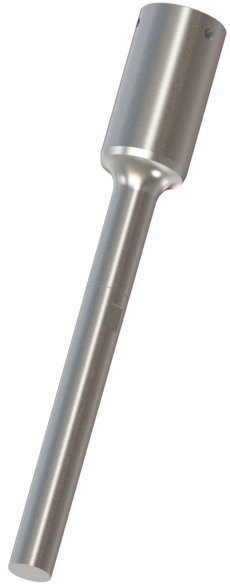

Extenders Tips fasten to Tapped Tips of identical diameter in place of the Replaceable Flat Tip.

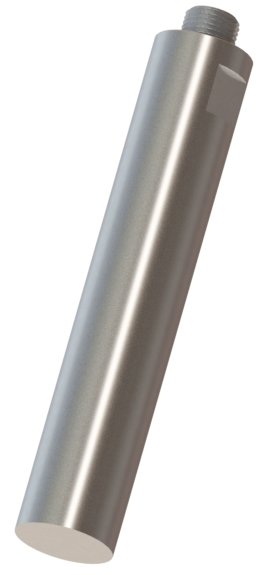

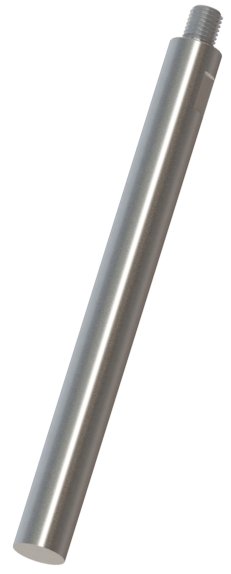

Titanium Solid Extender Tips
Catalog No.	0-120-0032	0-120-0034	0-120-0036
TIP DIA. (IN) (MM)	0.50 (1/2") 12.7	0.75 (3/4") 19.05	1.00 (1") 25.4
LENGTH (IN) (CM)	4.25 10.79	5.38 13.65	5.13 13.02
TYPE	SOLID	SOLID	SOLID

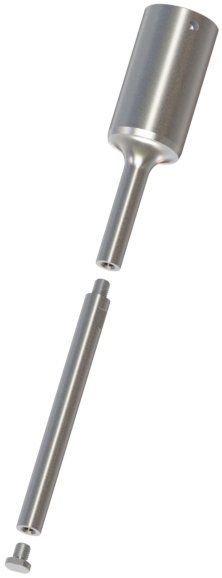

Extenders Tips fasten to Tapped Tips of identical diameter in place of the Replaceable Flat Tip.

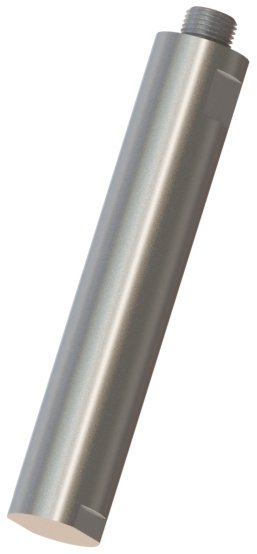

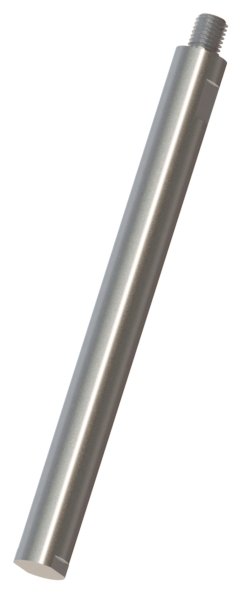

Titanium Tapped Extender Tips
Catalog No.	0-120-0033 *	0-120-0035 *	0-120-0037 *
TIP DIA. (IN) (MM)	0.50 (1/2") 12.7	0.75 (3/4") 19.05	1.00 (1") 25.4
LENGTH (IN) (CM)	5.38 13.65	5.13 13.02	5.00 12.70
TYPE	TAPPED	TAPPED	TAPPED

* USE REPLACEABLE FLAT TIP OF IDENTICAL DIAMETER
